1988-1994 GM Truck-SUV Auxiliary Power Distribution Center Kit, Gas Engines
$299.95

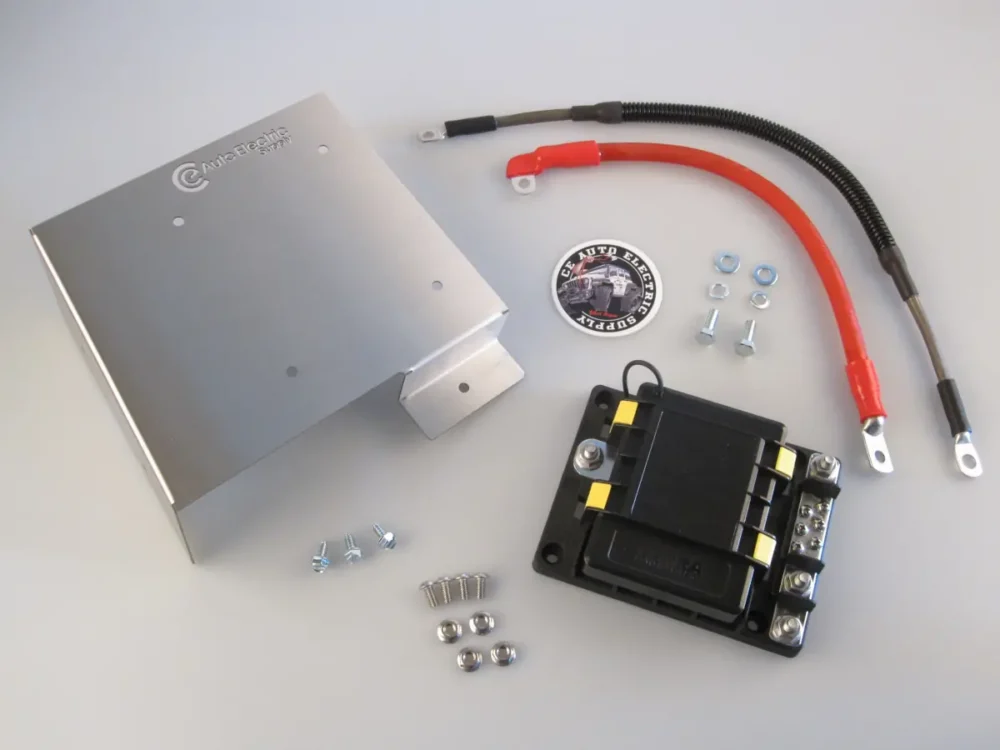

We developed this SUPER SLICK kit in-house to complement our early OBS truck and SUV offerings. Eliminate the rat’s nest of fuse holders, power leads, and all the other stuff tied to your battery terminals! Easily mounted and connected. Kit includes the following:
- 18 gauge Laser Cut Stainless Steel Mounting Bracket
- Littlefuse Waterproof MIDI-ATC Fused PDC
- 2 AWG Positive Cable Jumper
- 6 AWG Negative Cable Jumper
- Stainless Steel Hardware to Mount the PDC
- Plated Hardware to Mount the Bracket
- Side Post Accessory Terminal Adapter Bolt Extensions
This is a perfect fit to your vehicle! Provides 10 fused outputs and a ground bus.
Full specifications and fitment guide are provided below.
- Description
- Reviews (0)
Description
Specifications
Mounting Bracket
- 16 AWG Stainless Steel
- Laser cut
- Pre-bent for a perfect fit
Power Distribution Center
General features:
- (4) MIDI Fused Outputs
- (6) ATC Fused Outputs
- Ground Bus with (8) Outputs*
- O-ring sealed fuse compartment
- ATC Fuse puller included
- Tethered cover w/ storage for spare fuses
- Insert-molded studs for cable and fuse terminations
- AssureLatch™ Technology positive sealing latches keep cover securely in place while allowing for quick service
*In automobiles, we typically do not home-run grounds. Rather, they are connected to the body and/or frame. However, many aftermarket accessories include harness that provide that as a convenience – specifically lighting kits. The ground bus provides a convenient place to land those connections. We rate its total capability at 100A continuous via the included 6 AWG feed.
Specifications:
- Total Current Capability between all fuses**: 250A continuously
- Max MIDI Continuous Current: 170A per fuse
- Max ATC Continuous Current: 30A per fuse
- Fuse Tq: 15Nm
- Input / Output Studs: M8 Stainless Steel* w/ serrated nuts
- MIDI Fuse Studs: M8 Stainless Steel* w/ serrated nuts
- ATC Fuse Output: #8 Stainless Steel
- M8 Stud Tq: 20Nm
- Mounting Hardware: 1/4″ or M6 (not included)
- Mounting Tq: 30 Nm
- Operating Temp: -50 degC to + 125 degC
- Humidity: 0-95% RH
- Shock: 50G
- Vibration: 8G
- Ingress Protection: IP59K
- Ignition Protection: SAE J1171, ISO 8846
- Dimensions: 6.5″ x 5″ x 2″ (165mm x 127mm x 51mm)
**As supplied via the included 2 AWG feed
Installation Guidelines
If you are installing this kit along with our Battery Cable Kit for the same vehicle, you do not require any additional parts. If you are installing this kit with your stock battery cables, then you will need (1) Pair of our Side Post Battery Accessory Adapters – link provided below.
Fitment Guide
Fits the following vehicles with the 4.3L V6, 5.0L V8, 5.7L V8, and 7.4L Gas Engines:
1988 Chevrolet Silverado 1500 / GMC Sierra 1500
1989 Chevrolet Silverado 1500 / GMC Sierra 1500
1990 Chevrolet Silverado 1500 / GMC Sierra 1500
1991 Chevrolet Silverado 1500 / GMC Sierra 1500
1992 Chevrolet Silverado 1500 / GMC Sierra 1500
1993 Chevrolet Silverado 1500 / GMC Sierra 1500
1994 Chevrolet Silverado 1500 / GMC Sierra 1500
1992 Chevrolet Suburban / GMC Suburban
1993 Chevrolet Suburban / GMC Suburban
1994 Chevrolet Suburban / GMC Suburban
1992 Chevrolet K5 Blazer / GMC Yukon
1993 Chevrolet K5 Blazer / GMC Yukon
1994 Chevrolet K5 Blazer / GMC Yukon
