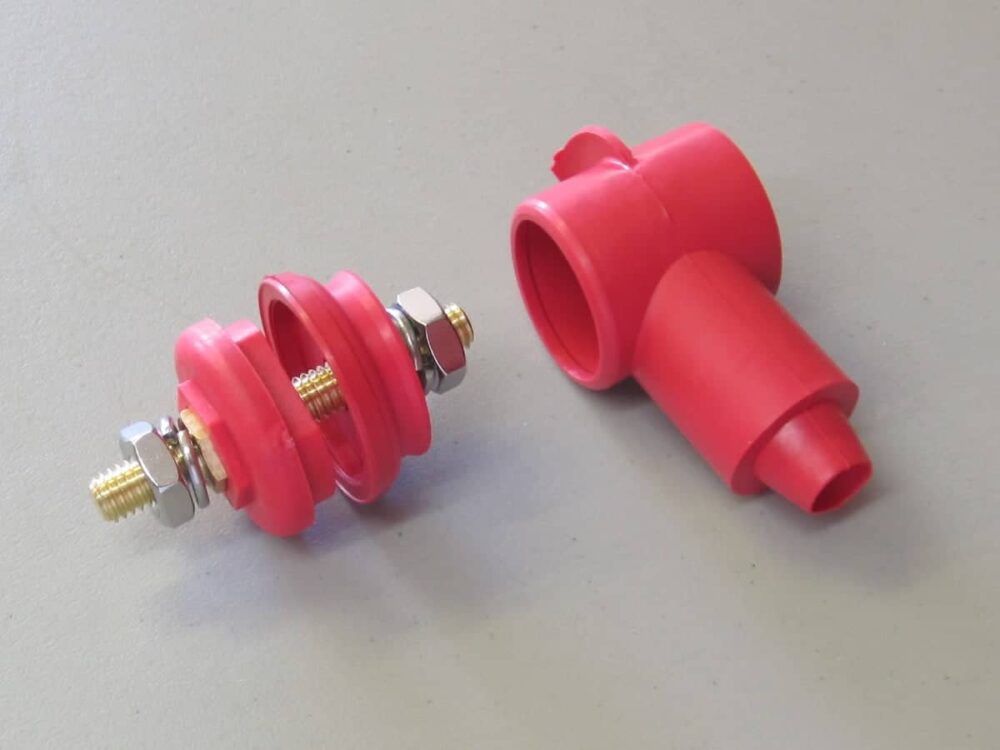

300 Amp Weatherproof Bulkhead Connectors

(1 customer review)


Includes Push-On Boot!

This weatherproof connector is rated to pass up to 300 Amps!

Full specifications provided below.

Connect to Cable via: 3/8″ eyelets available in Eyelets & Large Gauge Butt Connectors.




Panel Thickness:  1/8″ – 1/4″
Post Diameter:  3/8″
Post Material:  Brass
Maximum Voltage:  48VDC
Diameter of Hole Required:  1 11/32″ (34.1mm) with flats on sides for anti-rotation – template provided
OD of Base:  1 5/8″ (41.5mm)
Height with Boot Installed:  1 27/32″ (47mm) from panel
Hardware Included:  Stainless Steel nuts and lock washers, push-on boot

1 review for 300 Amp Weatherproof Bulkhead Connectors

  1. Paul Vest (verified owner)

    I’m really impressed with theses bulkhead connectors. They are high quality and were very easy to use.
