Bosch 30 Amp SPST Fog Lamp Relay
$10.95

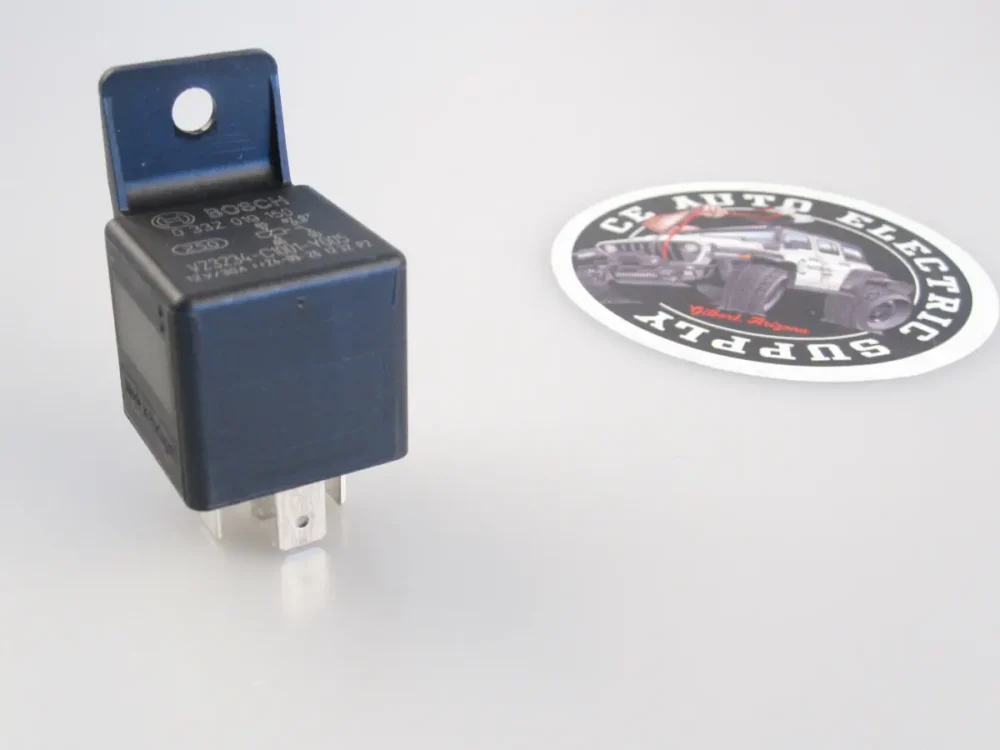

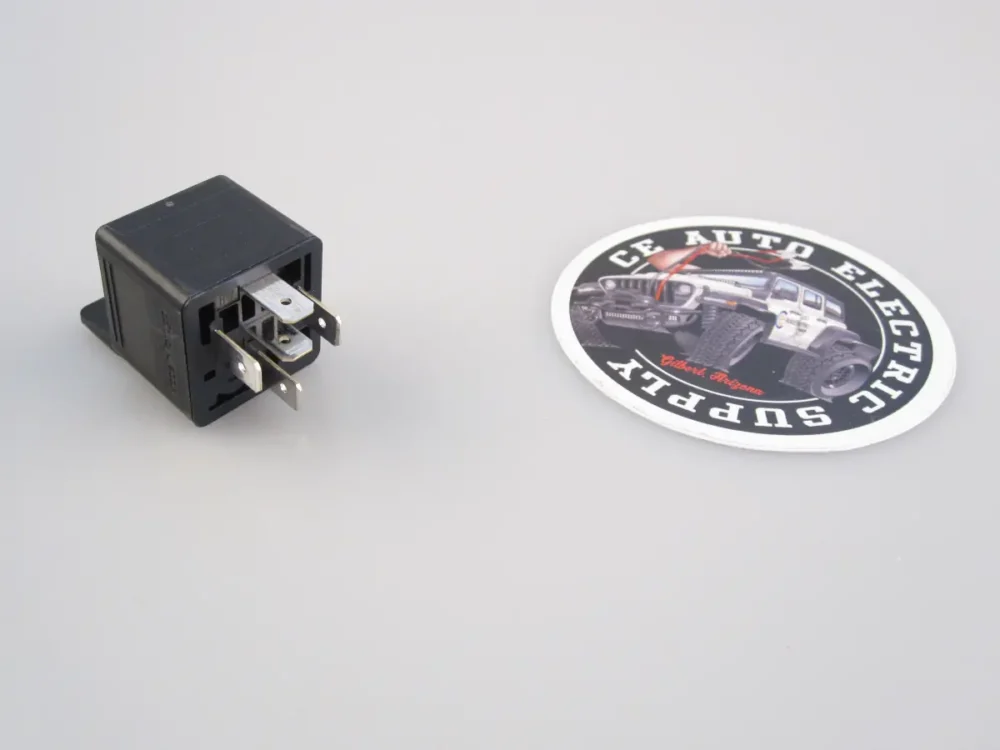

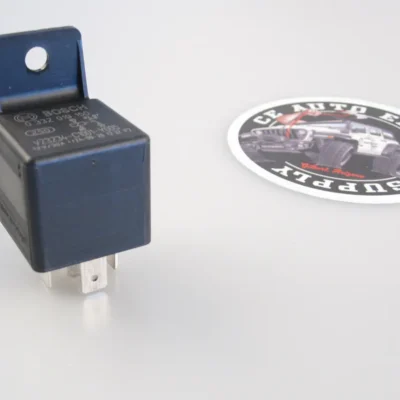

This is the industry reference for fog lamps. This is not a traditional 5-terminal relay. Rather, this is an SPST design with dual 87 terminals. See below for an in-depth explanation of how to use this relay.
View all items we stock related to 30A Relays.
Specifications and compatible Relay Sockets provided below.
- Description
- Reviews (0)
Description
Specifications
Relay Type:Â ISO* SPST with dual 87 Terminals
87 Terminals are connected internally, not isolated
Terminal Size: .250″ / 6.3mm
C to N.O.: 30 Amps continuous
Coil Voltage: 12 VDC
Coil Current:Â 160 mA @ 13.8VDC
Coil Suppression:Â None
As this relay is unique, power is connected to terminal 30 and the loads are connected to the 87 terminals – there are two and they are connected together internally as a convenience. As an example, you could run a 10 AWG feed to terminal 30, and then 14 AWG feeds from each of the 87 terminals to the respective lamps. If the lamps drew 15A each, the total load through the relay switch would be 30A.
*Note – ISO Relays are those with a terminal layout as this one with .250″ terminals.
