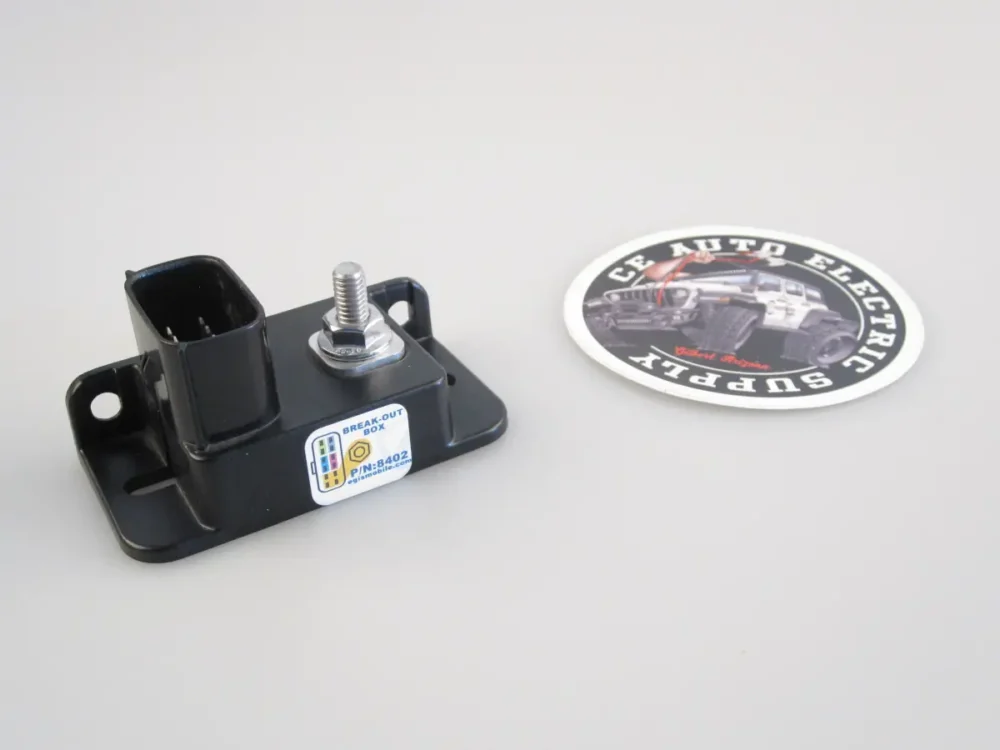

EGIS Sealed Break Out Box, 1×4 + 4×2 Circuits + M6 I/O
$25.90
This Sealed Break Out Box from EGIS is a super slick junction with multiple internal circuit buses. Eliminates unreliable external connections and allows for simple inspection and diagnosis. Ideal for improved harsh environment protection. Rated at 200 Amps total!
This unit has (5) separate internal circuit buses – refer to the 3nd image on the Schematic (in the photos) for specifics.
Dual mounting orientations, compact, bullet-proof construction, and ignition protected!
Full specifications below. Wiring and connectors shown for illustrative purposes and sold separately – also below.
- Description
- Reviews (0)
Description
Specifications
Max Total Continuous Current: 200 Amps
Max Current Per MX-150 Terminal: 22 Amps
Voltage Range: 8-36 Volts
Input Cable Size to Meet Max Ratings: 2/0 AWG
Maximum Input Cable Size: 4/0 AWG
Hardware Material: Stainless Steel Self-Locking
Input Stud Size: M8 – compatible with our MEGA Eyelets with 5/16″ holes
Terminal Stud Torque: 80 in-lbs
Ignition Protection: Per ISO-8846
Operating Temperature: -40 degC to 125 degC
Operating Humidity: 0 to 90% RH
Ingress Protection: IP67 / IP6K9K
Mechanical Vibration: 12g
Mechanical Shock: 35g / 10cycles
Dimensions: See last photo above
Options
Use our Custom Cable Builders to build cables to your specifications!
We sell Wire by the spool or by the foot in 14 colors in all sizes!
-
