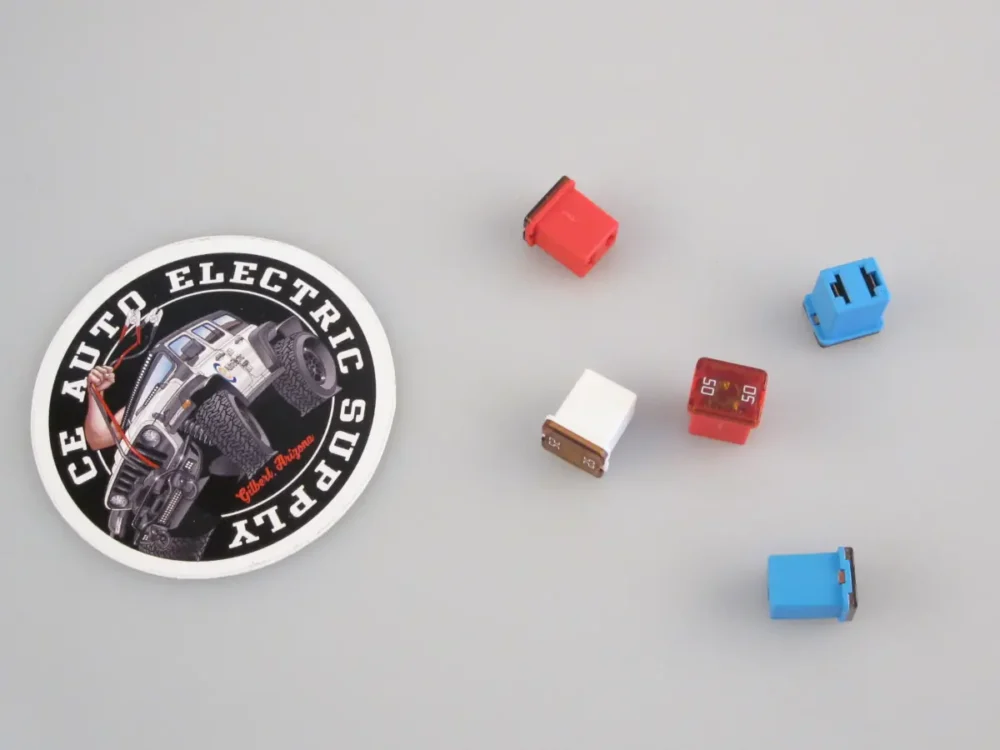

Littlefuse Low Profile JCASE Fuses
$3.95
Low Profile JCASE™ fuses are the perfect fit for our EGIS ATO/JCase 8+2 Fuse Block. These are also commonly found in OEM vehicle applications. These are of the short variety.
Offered in 20A, 25A, 30A, 40A, 50A, and 60A sizes. Specifications below.
Fuse holder shown in example is not included but is available separately below.
- Description
- Reviews (0)
Description
The JCASE™ is a cartridge style fuse with female terminal design, providing both increased time delay and low voltage drop to protect high current circuits and handle inrush currents. The JCASE™ was designed and patented by Littelfuse.
JCASE™ fuses have similar failure characteristics to fusible links, which is why you’ll find them under the hood of modern vehicles. In addition, they’re far easier to replace.
Specifications
Type: Low Profile JCASE
Voltage Rating: 58VDC
Interrupt Rating: 1,000A @ 58VDC
Operating Temp: -40 degC to +125 degC
Time vs Current Characteristics (min / max)
- 100% of rating – 360,000 sec minimum
- 135% of rating – 60 sec / 1800 sec
- 200% of rating – 4 sec / 60 sec
- 350% of rating – .2 sec / 7 sec
- 600% of rating – .04 sec / 1 sec
