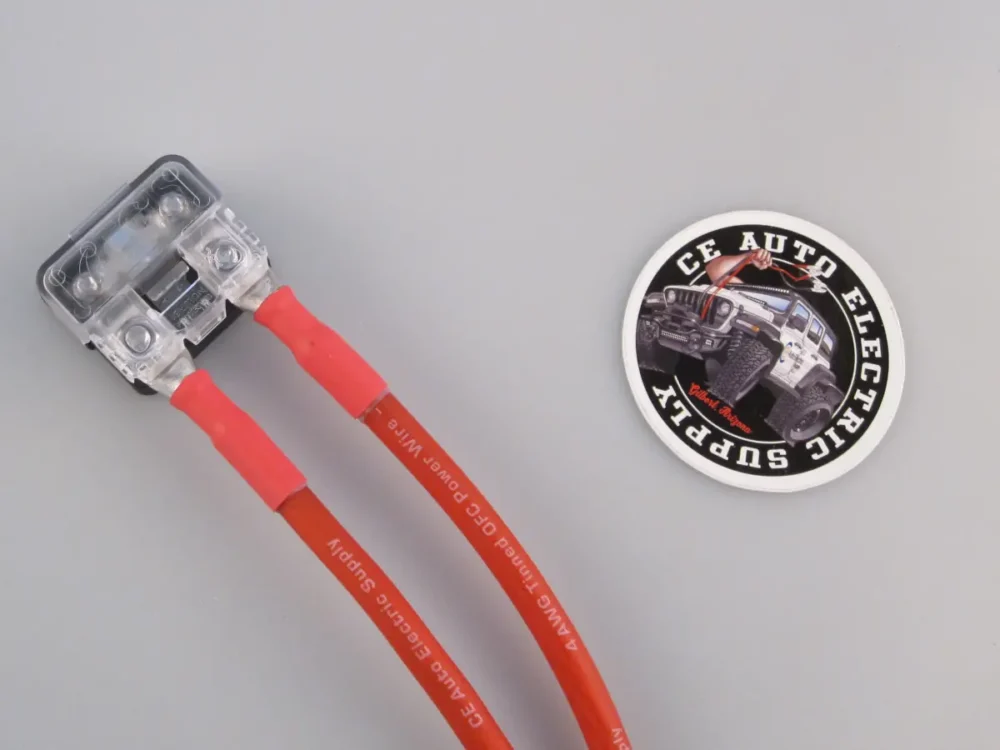

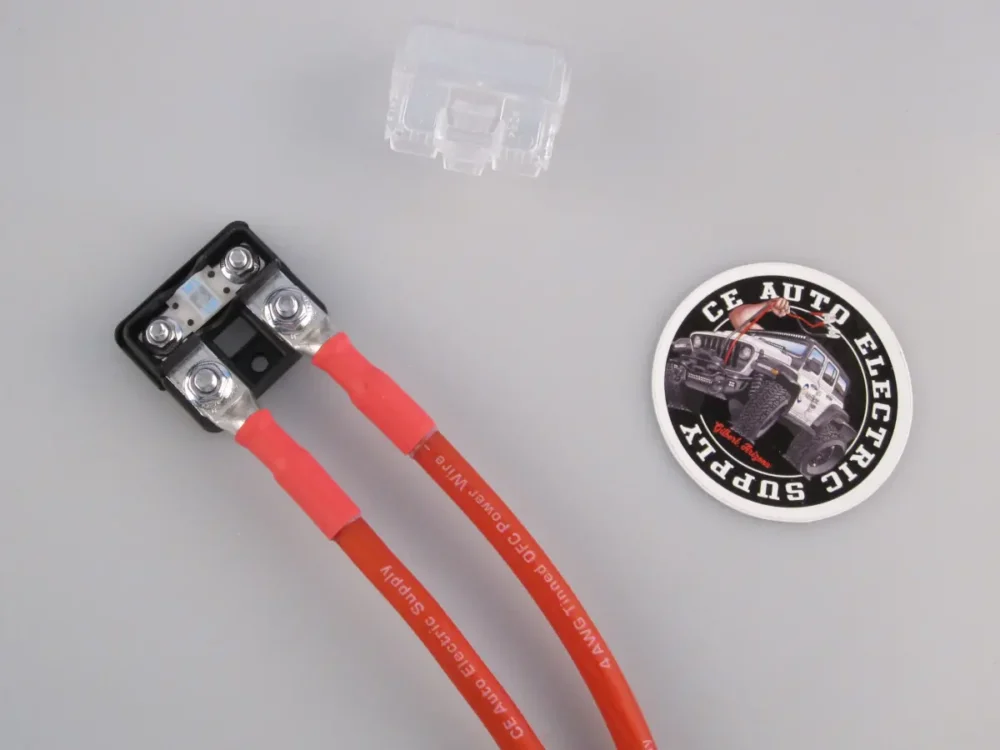

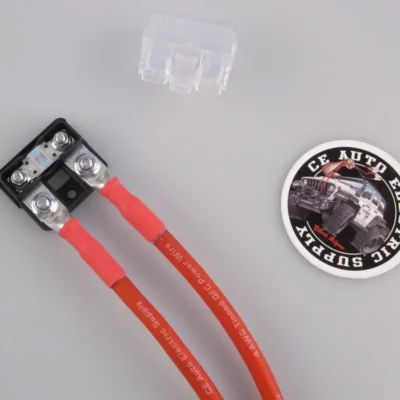

EGIS Compact Medium Amp AMI/MIDI Fuse Block
$30.00
This incredibly compact MIDI Fuse Holder is compatible with MIDI fuses up to 200A. Input and Output studs are M6, so compatible with our MEGA Eyelets with 1/4″ holes.

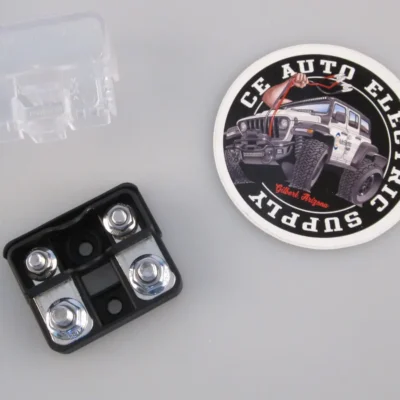

When the cover is installed, the unit is Ignition Protected – perfect for automotive and marine applications.
Full specifications and fuses available below! Fuse and cables are not included but are available separately!
- Description
- Reviews (0)
Description
Specifications
Dimensions – 2 3/64″ x 1 11/16″ 1 1/64″ H (52mm x 43mm x 26mm H)
Maximum Amperage: 200A
Maximum Voltage: 80VDC
Stud Size for Cable Attachments: M6 (1/4″ eyelets)
M5 Nut Recommended Stud Torque:Â 65 in-lbs (7.4 N-m)
M6 Nut Recommended Stud Torque:Â 80 in-lbx (9.0 N-m)
Mounting Holes:Â #10
Cover Material:Â Clear Polycarbonate
Base Material:Â Nylon 6 30% GF
Operating Ambient Temperature Range:Â -40 degC to 125 degC
Busbar Material:Â Tin Plated Copper
Ignition Protected:Â Yes
As with all Stainless Steel hardware, we recommend the use of anti-seize when assembling to prevent galling.Â
Options
Use our Custom Cable Builders to build cables to your specifications!
-
