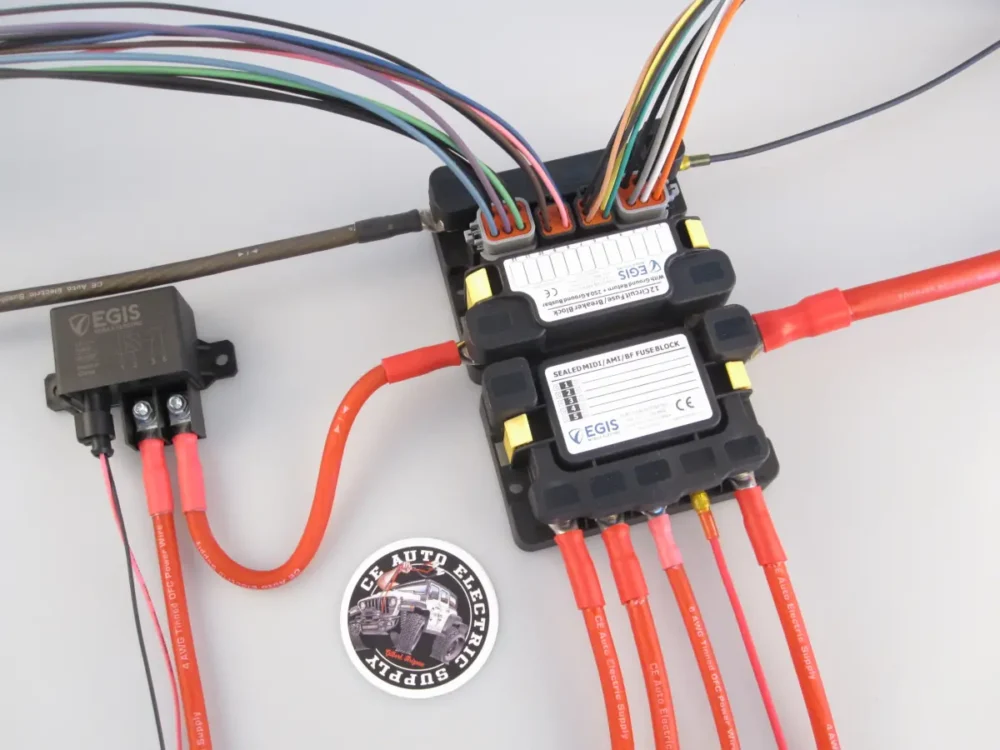

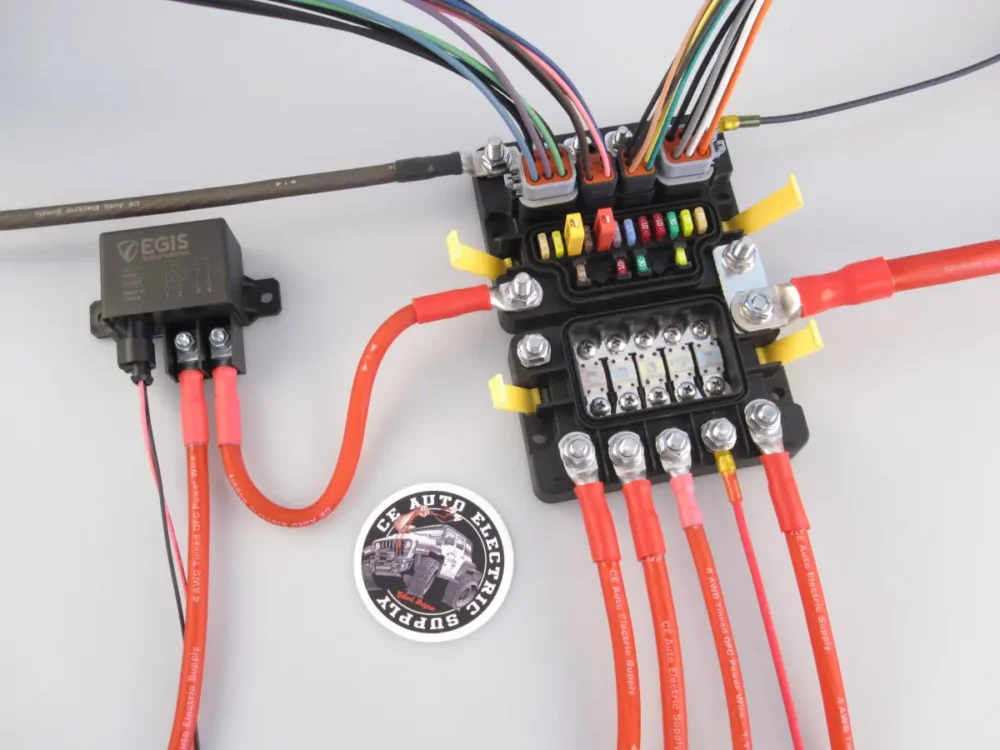

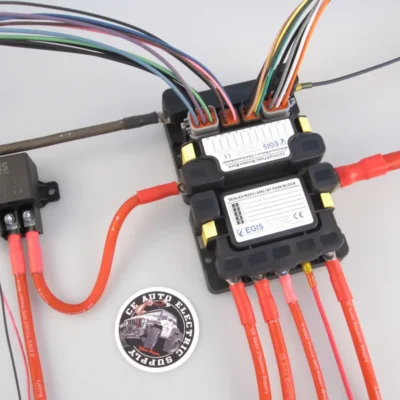

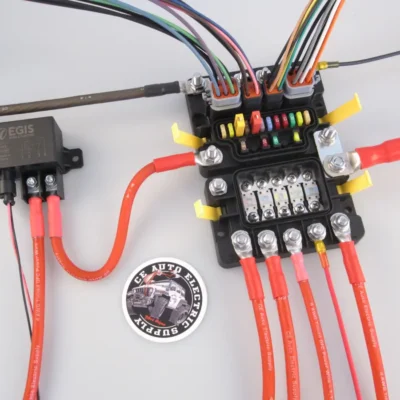

This SUPER Cool EGIS Waterproof MINI PDC has TWO isolated power buses, each common to 6 fuses.  This is ideal when you need B+ and switched circuits in a single unit.  See photos for an example of how to configure the unit with an external relay for such.  It packs the following in an incredibly compact (5.3″ x 3.9″ x 2.3″) assembly:

  • (2) Groups of (6) MINI / ATM Protected Circuits (fuse / breaker compatible)
  • (2) Power Busbars – Each is Common to (6) Fuses
  • Ground Busbar – Common to all (12) Circuits
  • Locations for (4) spare fuses / breakers

Output Connectors are water-tight and compatible with Deutsch DTP / DT or Amphenol ATP / AT Connectors (offered below).  Busbars allow you to connect multiple EGIS MT Series AND EGIS 5-Position AMI / MIDI Fuse Holders for maximum flexibility!

2nd and 3rd photos show what’s included. Please scroll through all photos to see numerous connectivity options. Full specifications below.

Connector Kits, Harness Kits, Fuses, Breakers, Busbars, EGIS Relay, and EGIS MIDI Fuse Holder sold separately below.

SKU: EGIS3466B Categories: , , , Tags: , , , , , , , ,
Add to wishlist

Description

Integrated Deutsch / Amphenol Output Connectors (Harsh Environment Industry Standard) for plug and play install and complete protection!  Protects add-on circuits from accidental short circuits or overload events.  Fully expandable with dual, triple, and quad link busbars.

Fuse / Breaker Compatibility

Fuse Type:  MINI / ATM
Breaker Type:  MINI / ATM

We have a full selectin of MINI / ATM Fuses and Circuit Breakers.

Specifications

Maximum Total Continuous Current: 250 Amps
Maximum MIN / ATM Fuse / Breakers Value:  30 Amps
Maximum ATP Continuous Current per pin: 25 Amps
Maximum AT Continuous Current per pin:  15 Amps
Maximum Total and/or Pass-Through Current for Power Bus:  500 Amps
Maximum Total and/or Pass-Through Current for Ground Bus:  500 Amps
Power Bus Studs:  M8 (5/16″)
Ground Bus Studs:  (2) M8 (5/16″) and (4) M6 (1/4″)
Input Cable Size to Meet Max Ratings:  2/0 AWG
Maximum Power I/O Cable Size:  4/0 AWG
Maximum Ground I/O Cable Size:  2/0 AWG
Operating Temperature Range:  -55 degC to 125 degC
Ignition Protected:  per SAE J1171
Ingress Protection Rating:  IP66 & IP6K9K
Maximum Vibration Withstand:  20g (10-2kHz)
Maximum Shock Withstand:  50g
Hardware Material: Stainless Steel Self-Locking
M6 Terminal Stud Torque:  80 in-lbs
M8 Terminal Stud Torque:  100 in-lbs
Mounting Holes:  M6 / 1/4″

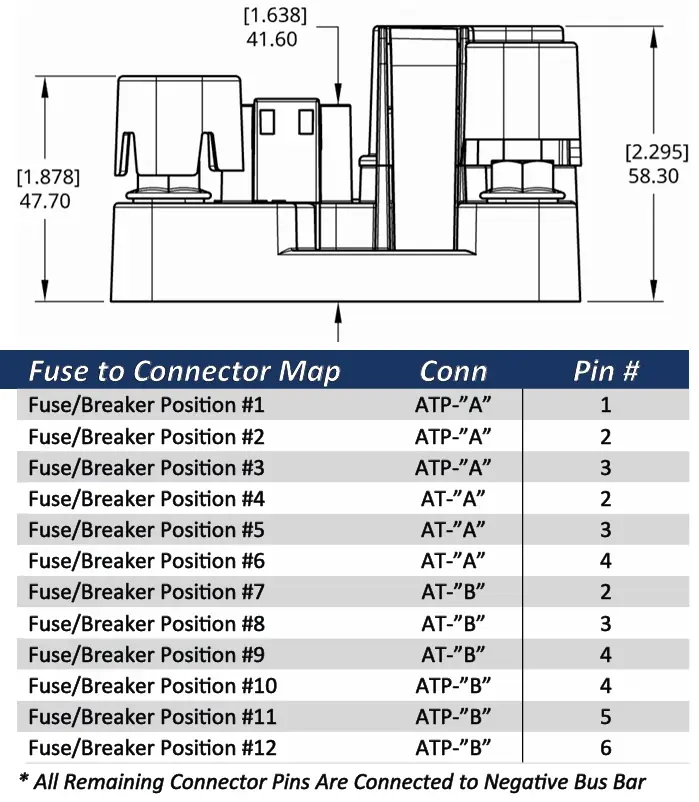

Dimensions – see drawings in the pictures above.

Pin Layout – see drawings in the pictures above.
