Gen 3 Dodge Diesel Truck Battery Cable Kits

$309.95$424.95

Order by 3PM AZ time M-F and by 1PM AZ time on Saturday and your kit typically ships the very same day!

These kits fit 2003- 2009 Gen 3 Dodge Trucks with the various 5.9L or 6.7L Cummins Turbo Diesel Engines.  These trucks originally came with dual batteries.  We offer kits specific to the 2003-2005 trucks as well as kits specific to the 2006-2009 trucks.

Stock Cable size is 1/0 AWG.  Our 1/0 AWG Kits offer improved cranking power and performance over stock cables, especially worn out ones (see below for more on that).  Our 2/0 AWG Kits and now 3/0 AWG kits offer even greater cranking power and performance – perfect for modified trucks!  We offer them all.  Parts list and specifications listed below.

Some 2007-2009 trucks require a 90-degree eyelet on the starter cable – view the last photo and compare to your truck before ordering!  All 2003-2005 trucks use straight eyelets.

See below for the complete list of all the stuff we offer for the Gen 3 trucks!

Clear

Description

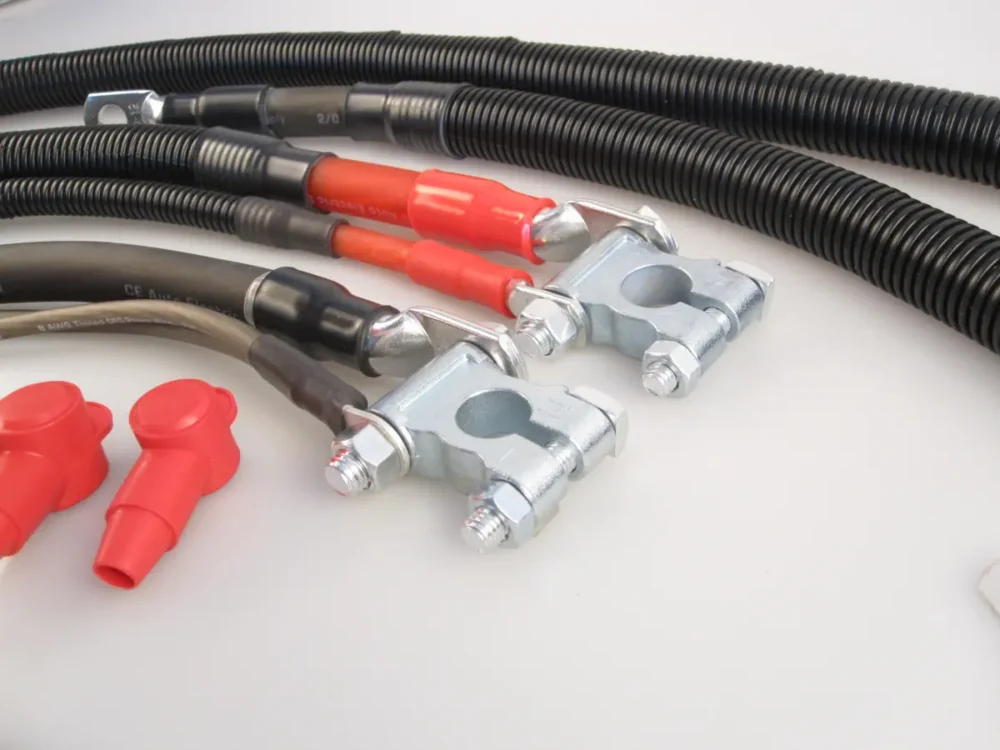

These Cable Kits are made to fit your truck perfectly! All kits include Military Style Battery Terminals – won’t crack or break like the original lead terminals!

2002-2005 Kits also include the following:

  • Driver’s Side Positive Battery Cable Assy – loomed 1/0 AWG (or 2/0 AWG or 3/0 AWG) cable to the starter, loomed 4 AWG cable to the PDC, 16 AWG fusible link wire assy to the ECU power lead
  • Driver’s Side Negative Battery Cable Assy – 1/0 AWG (or 2/0 AWG or 3/0 AWG) ground cable to the block, 8 AWG ground cable
  • Passenger Side Positive Battery Cable Assy – loomed 1/0 AWG (or 2/0 AWG or 3/0 AWG) Crossover Cable to connect battery positives, 4 AWG charge lead with integrated fusible link, dual 8 AWG grid heater solenoid leads with integrated fusible links
  • Passenger Side Negative Battery Cable Assy – 1/0 AWG (or 2/0 AWG or 3/0 AWG) ground cable to the block, dual 8 AWG ground cables
  • Boots to insulate positive connections
  • Loom to dress the starter solenoid trigger lead which must be separated from the factory starter cable Assy

Fits the following trucks:

2003 Dodge Ram 2500 Truck w/ 5.9L Cummins Diesel Engine
2003 Dodge Ram 3500 Truck w/ 5.9L Cummins Diesel Engine
2004 Dodge Ram 2500 Truck w/ 5.9L Cummins Diesel Engine
2004 Dodge Ram 3500 Truck w/ 5.9L Cummins Diesel Engine
2005 Dodge Ram 2500 Truck w/ 5.9L Cummins Diesel Engine
2005 Dodge Ram 3500 Truck w/ 5.9L Cummins Diesel Engine

2006-2009 Kits also include the following:

  • Driver’s Side Positive Battery Cable Assy – loomed 1/0 AWG (or 2/0 AWG or 3/0 AWG) cable to the starter, loomed 4 AWG cable to the PDC
  • Driver’s Side Negative Battery Cable Assy – 1/0 AWG (or 2/0 AWG or 3/0 AWG) ground cable to the block, dual 8 AWG ground cables
  • Passenger Side Positive Battery Cable Assy – loomed 1/0 AWG (or 2/0 AWG or 3/0 AWG) Crossover Cable cable to connect battery positives, 4 AWG charge lead with integrated fusible link, 8 AWG grid heater solenoid lead with integrated fusible link
  • Passenger Side Negative Battery Cable Assy – loomed 1/0 AWG (or 2/0 AWG or 3/0 AWG) ground cable to the block, 8 AWG ground cable
  • Boots to insulate positive connections
  • Loom to dress the starter solenoid trigger lead which must be separated from the factory starter cable Assy

*2007-2009 Model Truck Owners – Please note that some 2007, 2008, and 2009 trucks have a 90-degree eyelet on the end of the OEM starter cable which bolts to the starter. If you own one, then we advise you to check this before ordering. If your cable kit requires this, then select 90-degree as the Starter Eyelet Type.

Fits the following trucks:

2006 Dodge Ram 2500 Truck w/ 5.9L Cummins Diesel Engine
2006 Dodge Ram 3500 Truck w/ 5.9L Cummins Diesel Engine
2007 Dodge Ram 2500 Truck w/ 5.9L Cummins Diesel Engine
2007 Dodge Ram 3500 Truck w/ 5.9L Cummins Diesel Engine
2007 Dodge Ram 2500 Truck w/ 6.7L Cummins Diesel Engine
2007 Dodge Ram 3500 Truck w/ 6.7L Cummins Diesel Engine
2008 Dodge Ram 2500 Truck w/ 6.7L Cummins Diesel Engine
2008 Dodge Ram 3500 Truck w/ 6.7L Cummins Diesel Engine
2009 Dodge Ram 2500 Truck w/ 6.7L Cummins Diesel Engine
2009 Dodge Ram 3500 Truck w/ 6.7L Cummins Diesel Engine

Specifics to All Kits

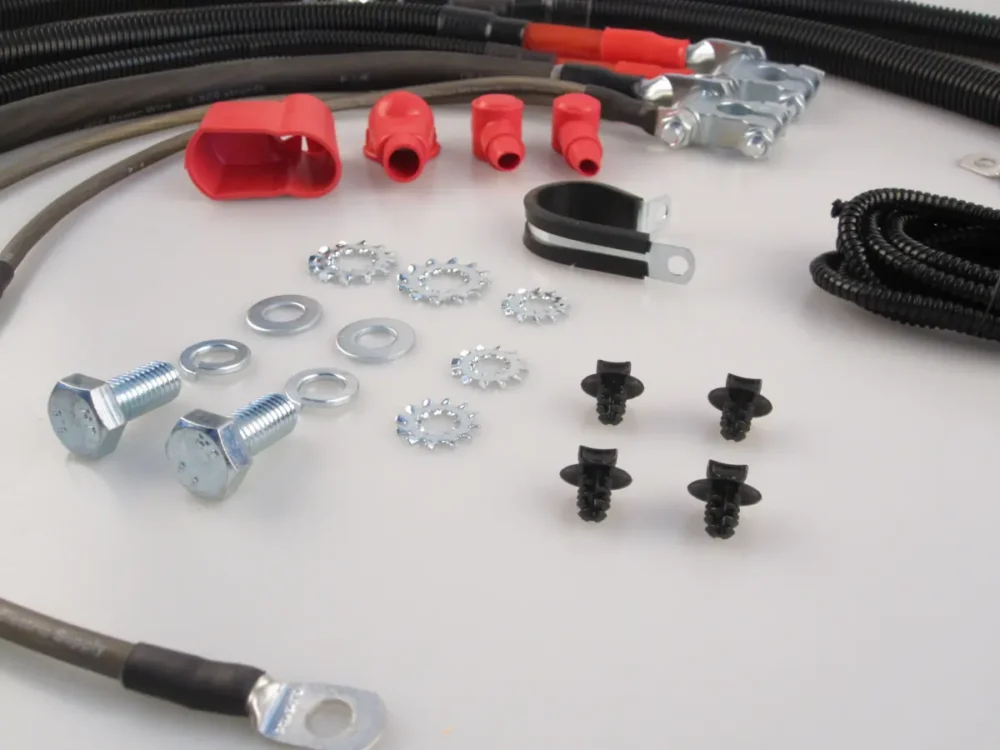

All kits include a complete complement of hardware for a smooth installation.

All cable is our super flexible tinned Oxygen Free Copper (OFC) Battery Cable terminated with our MEGA Eyelets and insulated with adhesive lined heat shrink.

Our 1/0 AWG Cable has 4,704 strands
Our 2/0 AWG Cable has 5,929 strands – 26% more copper!
Our 3/0 AWG Cable has 7,546 strands – 60% more copper than 1/0 AWG!

They’re designed to last the life of your truck!

Stock Cable Sets vs Time

Corrosion and oxidation are major factors in why the cable sets in these trucks are due for replacement.  One of the biggest factors is what happens between the negative cables to the engine block and the terminations themselves.  We’ve got excellent photos of this from a Gen 1 Dodge Diesel Truck if you’d like to view them.
